Broken display of M and MV columns in PSD

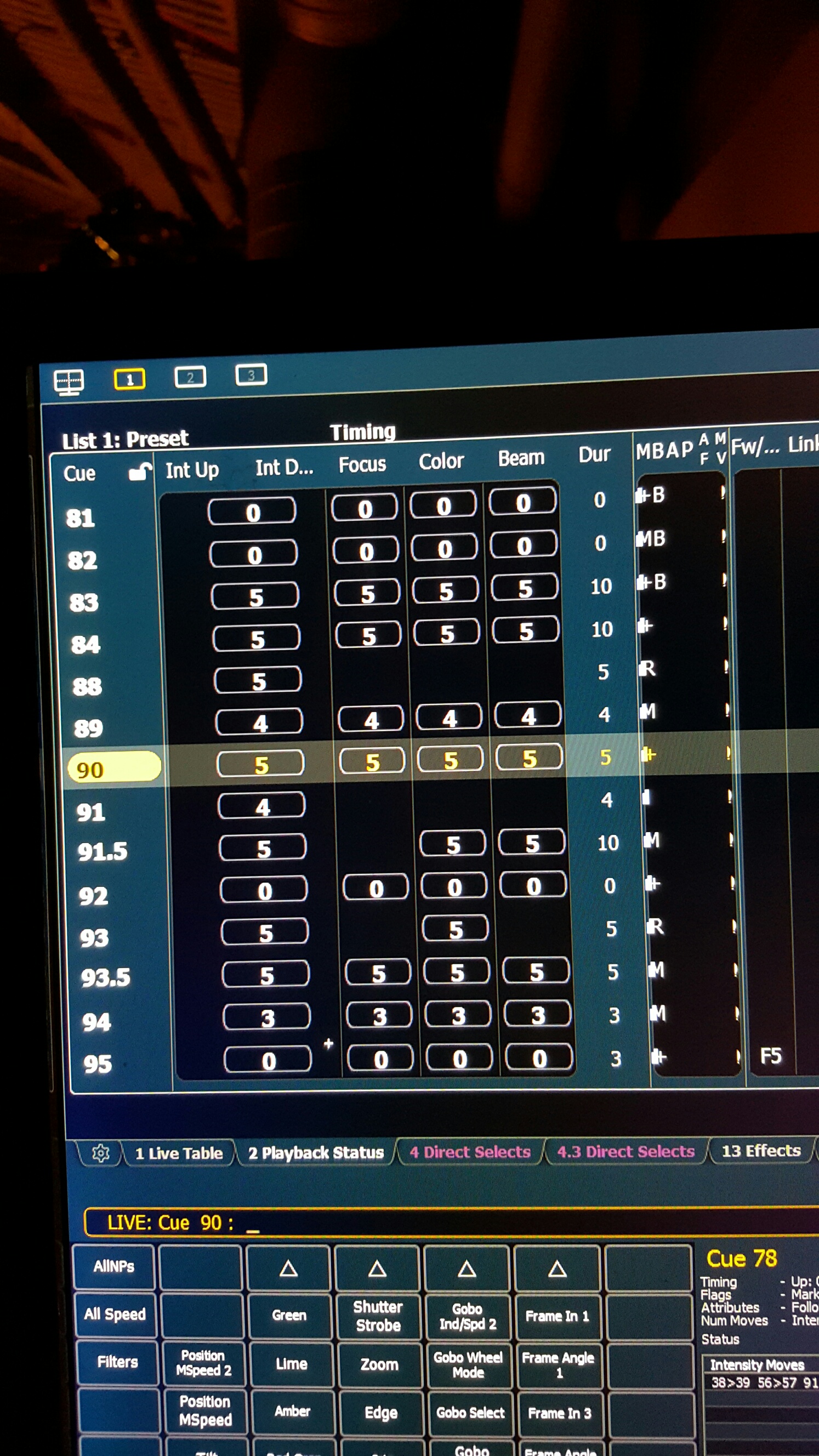

As per the attached screenshot, the M and MV columns on the PSD are not displaying properly. If I click on the column header the display refreshes and these columns display correctly, but the display breaks again after running the next cue. This is with ETCNomad version 2.3.3 acting as a client.

Is there any workaround for this?

  • well, the current workaround is not making the columns narrower than the default width...
  • Hi, I haven't resized the flag columns and they appear fixed width anyway. The only columns I've resized (increased) are Cue and Label so that I can see the contents of those columns. Or are you saying I shouldn't resize any other columns if I want to see the flags?

    I'm running at 1920x1080 resolution with a single vertical split in the workspace.
  • "I'm running at 1920x1080 resolution with a single vertical split in the workspace."
    That is altering the default size of the column in a major way.... if you spend some time resizing the timing columns you might be able to fix it but you have halved the amount of expected space then made two columns bigger.
  • Thanks, though I can't find any way of increasing the width of the flags column in the PSD, either directly or by reducing other columns.

    Even with the vertical split there is plenty of screen space for the columns I need to see in the PSD, I just can't adjust the flags column to make best use of that space and not scramble the text.

    (Also the default Nomad workspace layout following a deep clear has the PSD on one side of a vertical split, so the flags column should really be set wide enough to work in that configuration? Or does the default workspace assume a wider screen resolution than 1920?)

    Also what I'm seeing is that after the flags column width is reduced on the vertical split, it doesn't increase again when returning to full screen width if other columns have been resized. ie with the original screenshot, the flags column remained exactly the same width (approx 85 pixels) when I changed the workspace back to full screen - and therefore the M and MV columns were still broken. The only way I could find to expand the flags column again was to deep clear.
