Magic sheet text size and channel issue

Hello Hive Mind,

Got a couple of magic sheet questions! First, I would like to make some of the text MUCH bigger in my symbols. The default text size is 21 and I can't seem to make it go bigger, even if I change the size number. Is text size limited by symbol size?! Second I have been adding symbols and the channel number appears in order...which is great. I mistakenly added a fixture/symbol and then deleted it, but now when I add new symbols, it shows the channel # as one higher. So now I have to change the channel # after every time i insert a new symbol. Is there a way to fix this.

Thanks so much for any advice!

Pat

saranow over 9 years ago

Hello, Patrick:

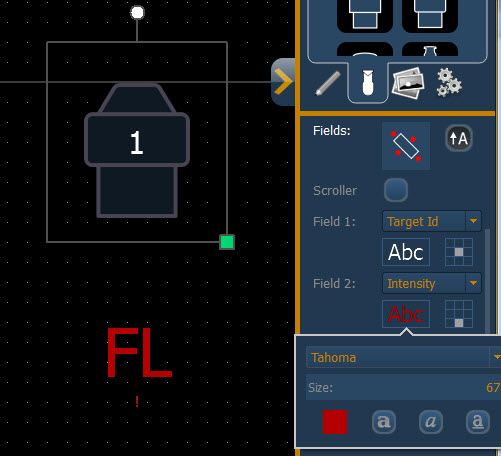

You should be able to change the text size to be larger than the object if you desire. You need to be sure to change the text side for the field itself, and not at the top where "Label" is called out. If you scroll down in the editor you will see "ABC" below each Field and should able to increase size in that location.

As for adding the new channels- you can use the numbering tool to fix this. Click the pointer icon at the top, and then use the renumbering tool to quickly change the channel number on objects sequentially.

Thank you,
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Patrick37576 over 9 years ago in reply to saranow

Thank you Thank you Thank you Sasha!

One last question. Ok, I'm probably lying...there'll be more...

Is there a way to select a bunch of symbols and change them all to another symbol, or one at a time?!

Thanks again,

Pat
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
ueliriegg over 9 years ago in reply to Patrick37576

no...
