Fixture update Mini LED PAR

Question

I've been struggling with this particular fixture for a while. I believe it's the profile having strobe feature before the intensity, but I'm struggling to write the appropriate profile myself. Hoping you could help. Trying to have the profile up and running by October 14th if possible. Thanks.

Cameron Swenson · Answer

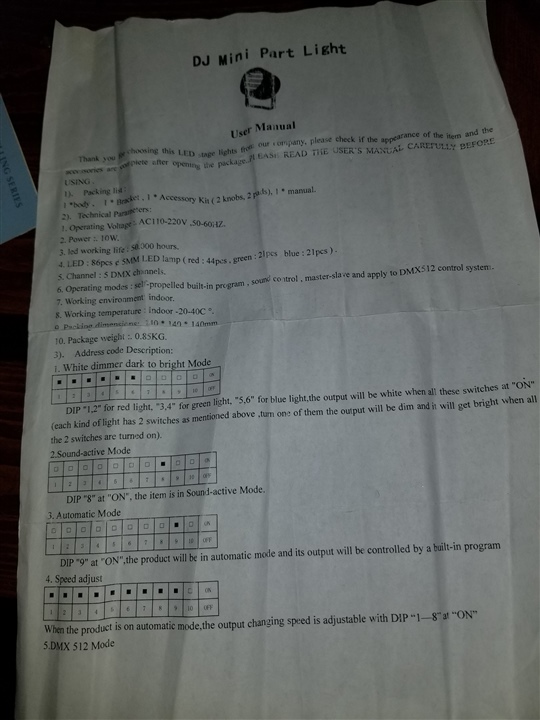

Make sure your fixture is switched into DMX mode, It looks like some of those dip settings might be a little funky and mess with your data input.

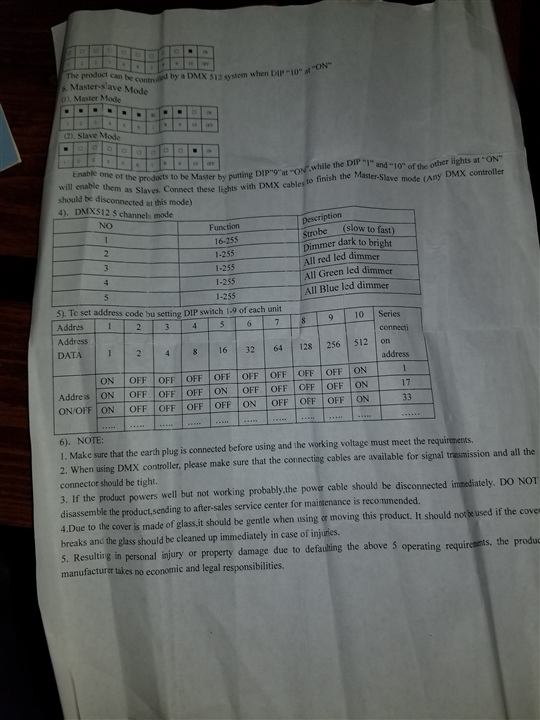

 Picture states that strobe is from 16-255. Might be no strobe if set 1-15.
 If you are going to build your own profile, I suggest something like this:

Number
 Param
 Size
 DMX
 ...
 Range

1
 Strobe Effect Rate
 8bit
 1

 2

2
 Intens
 8bit
 2

 1

3
 Red
 8bit
 3

 1

4
 Green
 8bit
 4

 1

5
 Blue
 8bit
 5

 1

In your range for strobe

Min
 Max
 Label

0
 15
 Off

16
 255
 Rate

if you want to troubleshoot the easy way if the fixture isn't behaving as you think it should, then just patch all the channels dimmers to it. Start with them all up and slowly take one out. whip out a pad and write down what's changing for each dimmer. (8bit fixtures only, 16bit gets tricky that way)
