How do I remove a Locked Parameter row from the Fixture Editor?

Question

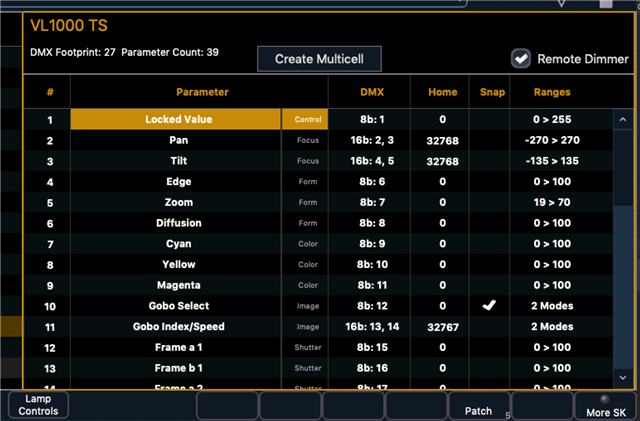

For reasons too complicated to go into that have to do with ESP Vision bugs, I need to make a version of the stock VL1000 TS fixture in the library that doesn't have the first channel which is a placeholder DMX channel using a Control parameter called "Locked Value".
 I can't figure out how to do it. I can copy the fixture, but I can't get that row to go away. I can select it and delete it, but it just bounces to the end. I can re-map it to a normal parameter and then delete it, but it just comes right back. I want to get this fixture type down to 26 addresses, not 27. How do I get rid of this row?

ueliriegg · Accepted Answer

You're trying to have a personality with a gap at the beginning. pan starts at address 2, so address 1 needs to live somewhere.
 So your solution is a bit tedious: you have to change the address of all the parameters. At some point the locked value will change to 27 and either go away itself or you can then finally delete it.
