ECT Ion and Capture Argo software

make sure, your ion and the argo computer are in a compatible ip/subnet range. activate sACN output in the ion's shell. in ion patch, make sure, that all the channels you want to visualize have sACN in the interface field.
in argo you have to assign the sACN input to the visualizers patch. and if your computer has more than one network card, there is a setting somewhere to choose which network card is the one receiving sACN. argo call sACN by it's standard name which is E1.31

Thank you
I'm not in front my ION now, but i've tryied to follow your instructions using my Offline editor and the argo demo version. Unfortunately I didn't solve the problem.
That's what i did on ION

1) I left activated only the sACN protocol seated as default. All the remaining protocols are deselected

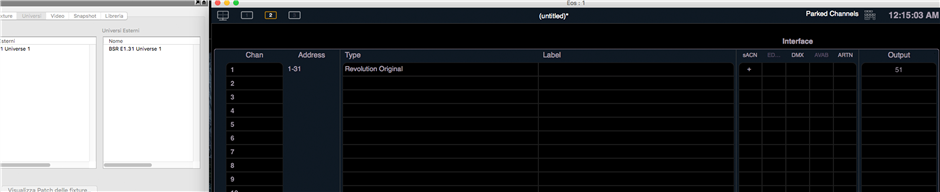

2) on the patch page the only interface available is the Default, so Im not allowed to set the sACN

on Cargo:

1) on connection tab all ip protocols are set as Automatic

Hi Valerio,

could you post screenshots

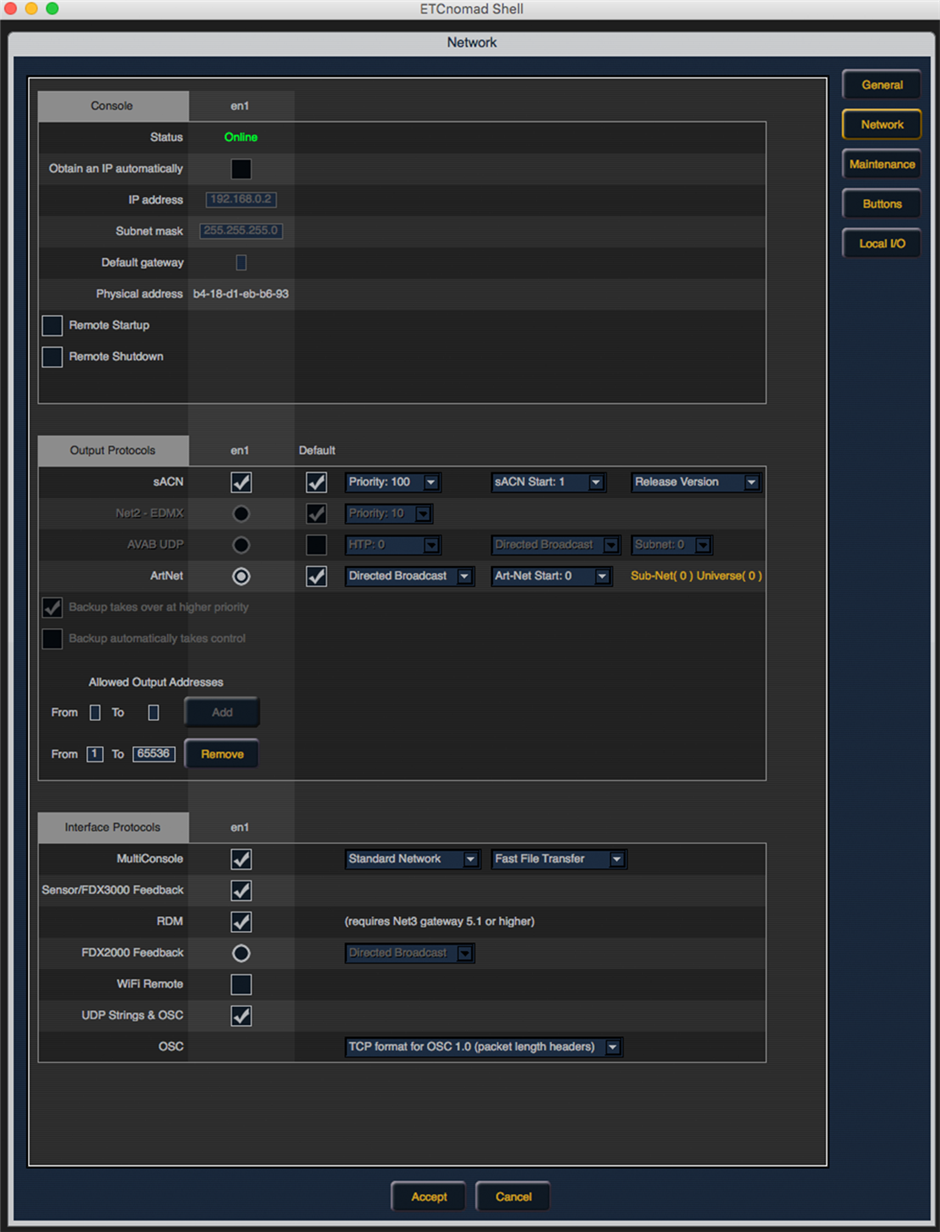

         - of your Network Settings in Eos Nomad Setup

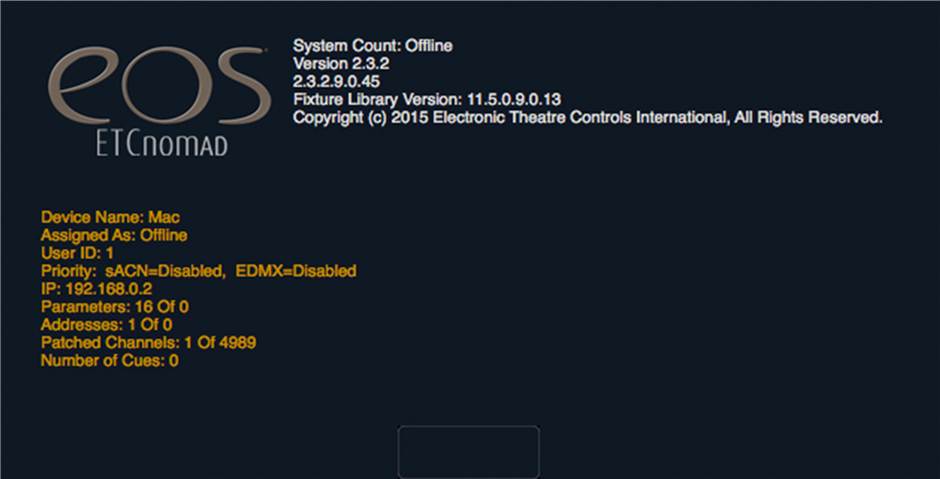

         - of ABOUT Screen in Eos Nomad (Press ABOUT Button)

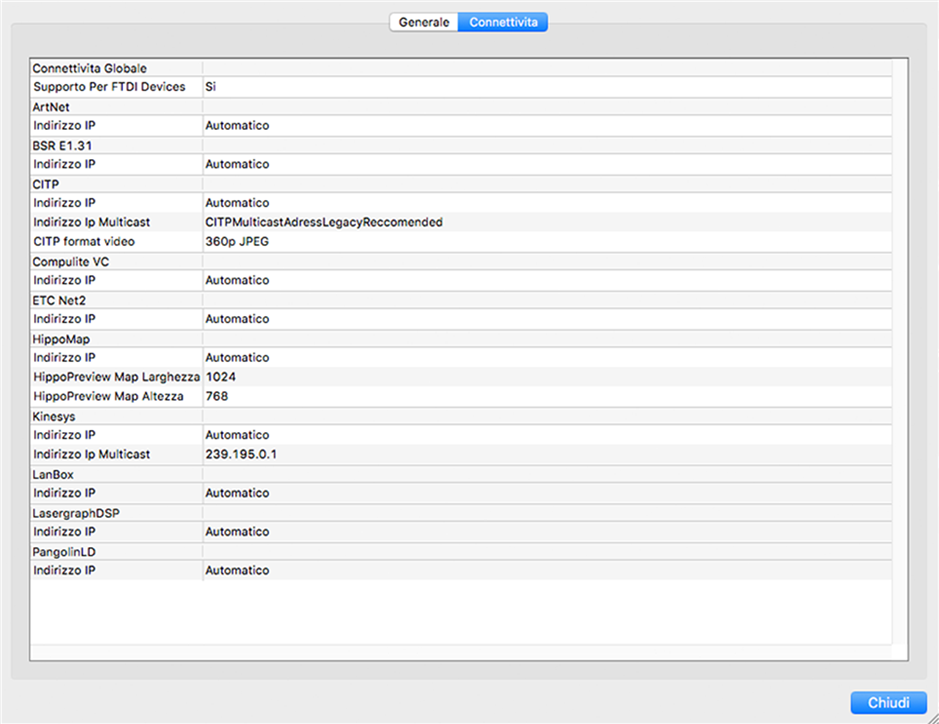

         - of Network Settings in Capture Argo

?

thanks,

in what mode did you start offline editor (it's actually called Nomad)? you can choose Offline, offline w/viz, mirror mode. you have to choose offline w/viz, because offline will not output anything.
the thing you did with default should be ok.
i suggest you download a software called sACNview. it's for free. install it on the Capture PC. it allows you to check if the sACN values from nomad/console arrive on your pc.

Here it is

Thank you in advance

Seems it works now..I've started Nomad in offline w/viz mode as suggested and i can set sACN interface.
I've few more questions about how to work with argo. My need is to prepare a show in theatre, setting up a plan on ION, then move at home and work on that plan I did, making focus points ad all other things we need.
How to set work to have this result?
Should i prepare plans with magic sheet, patch fixtures, then work with argo? or what i do (plan) on ION won't be visibile on argo?

Another thing: i've some fixtures that don't appear on argo list, any chance to load them on capture software?
Thank you everyone for your precious help

Valerio
